30/30 Center Cross Reticle

A variant on the classic L4 reticle, the 30/30 Center Cross offers 30″ spacing from post to post at 100yds, when on 4x magnification. This is equivalent to 83cm at 100m

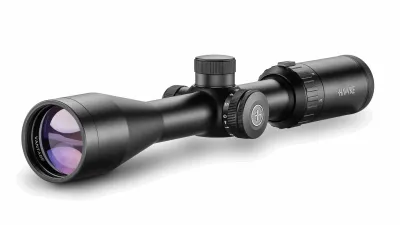

Model 14 220

Instruction Manual

Objective Lens  40mm

Reticle  30/30 Centre Cross

Parallax  Fixed

Magnification  3 – 9x

Optical System  System H2

Scope Tube  1 Inch

Illumination  5 Levels – Red/Green

Field of View  39 – 12.7ft @100yds, 13 – 4.2m @100m

Field of View (°)  7.4 – 2.4

Eye Relief  3.5in, 90mm

PX/Focus  100yds, 91m

Turret Caps  YES

Click Value  ¹⁄ ₄MOA

Elevation Turret Clicks (max)  100 MOA

Windage Turret Clicks (max)  100 MOA

Exit Pupil  0.52 – 0.17″, 13.3 – 4.4mm

Ocular Type  Fast Focus

Power Selector  Knurled Posi-Grip

Lens Coating  Fully Multi-Coated – 11 Layers

Focal Plane  SFP (Second Focal Plane)

Length  12.4in, 315mm

Weight  15.2oz, 430g
