Mil Dot Reticle

The classic Mil Dot features multiple aim points for hold-over and hold-under. Accurate mil spacing on 10x, featuring 4 Mil Dots in each direction.

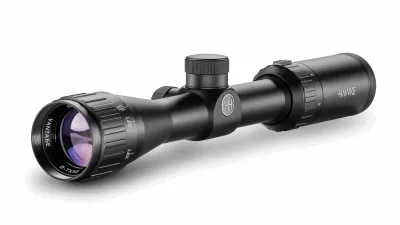

Model 14 111

Instruction Manual

– Objective Lens  32mm

Reticle  Mil Dot

Parallax  Adjustable Objective

Magnification  2 – 7x

Optical System  System H2

Scope Tube  1 Inch

Illumination  N/A

Field of View  46.6 – 14.1ft @100yds, 15.5 – 4.7m @100m

Field of View (°)  8.9 – 2.7

Eye Relief  3.5in, 90mm

PX/Focus  5yds – ∞, 5m – ∞

Turret Caps  YES

Click Value  ¹⁄ ₄MOA

Elevation Turret Clicks (max)  140 MOA

Windage Turret Clicks (max)  140 MOA

Exit Pupil  0.63 – 0.18″, 16 – 4.6mm

Ocular Type  Fast Focus

Power Selector  Knurled Posi-Grip

Lens Coating  Fully Multi-Coated – 11 Layers

Focal Plane  SFP (Second Focal Plane)

Length  11.5in, 292mm

Weight  14.7oz, 417g
