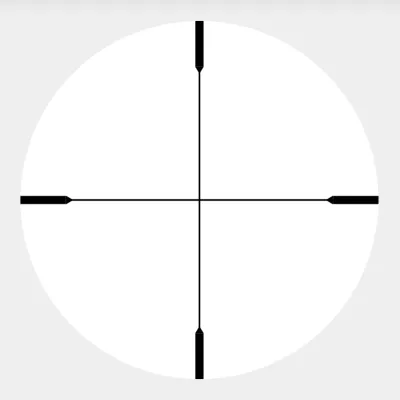

30/30 Duplex Reticle

A variant on the classic L4 reticle, the 30/30 Duplex offers 30″ spacing from post to post at 100yds, when on 4x magnification

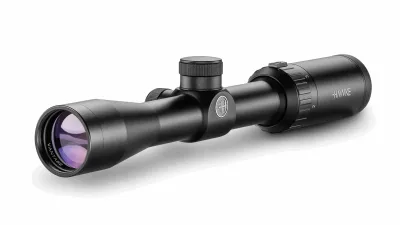

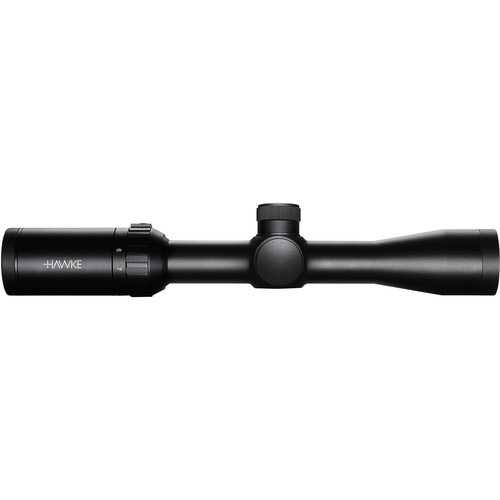

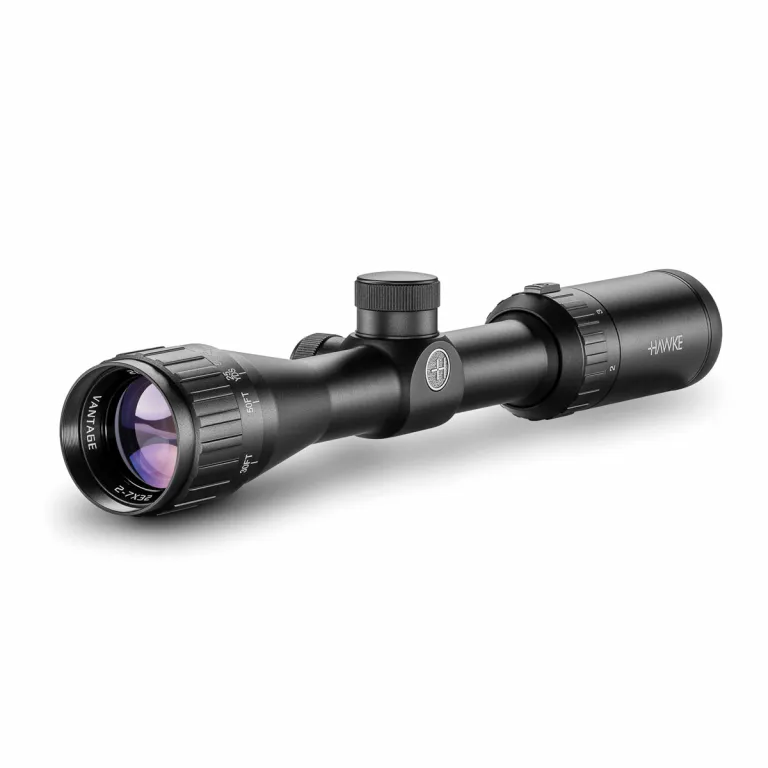

Model 14 110

Instruction Manual

Objective Lens  32mm

Reticle  30/30 Duplex

Parallax  Fixed

Magnification  2 – 7x

Optical System  System H2

Scope Tube  1 Inch

Illumination  N/A

Field of View  46.6 – 14.1ft @100yds, 15.5 – 4.7m @100m

Field of View (°)  8.9 – 2.7

Eye Relief  3.5in, 90mm

PX/Focus  100yds, 91m

Turret Caps  YES

Click Value  ¹⁄ ₄MOA

Elevation Turret Clicks (max)  140 MOA

Windage Turret Clicks (max)  140 MOA

Exit Pupil  0.63 – 0.18″, 16 – 4.6mm

Ocular Type  Fast Focus

Power Selector  Knurled Posi-Grip

Lens Coating  Fully Multi-Coated – 11 Layers

Focal Plane  SFP (Second Focal Plane)

Length  11.2in, 285mm

Weight  12.8oz, 363g
