10x Half Mil Dot Reticle

Accurate mil spacing on 10x. Features dots and ties at half mil spacing, ensuring that there is always an aim point available. Glass etched fully floating reticle. One of the additional benefits of the 10x Half Mil Dot is the mil spacing and 0.2 mil spacing segments of the hollow bars which can be used to accurately range find targets.

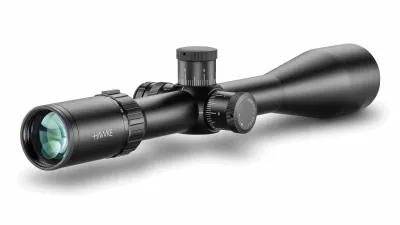

Model 14 297 : QUICK LINK'S

Instruction Manual

Reticle Booklet

Objective Lens  50mm

Reticle  10x Half Mil Dot

Parallax  Side Focus

Magnification  6 – 24x

Optical System  System H2

Scope Tube  30mm

Illumination  5 Levels – Red/Green

Field of View  20.7 – 5.4ft @100yds, 6.9 – 1.8m @100m

Field of View (°)  3.9 – 1

Eye Relief  3.5in, 90mm

PX/Focus (Error free from)  10yds – ∞, 9m – ∞

Turret Caps  N/A

Click Value  ¹⁄ ₁₀MRAD

Elevation Turret Clicks (max)  20 MRAD

Windage Turret Clicks (max)  20 MRAD

Exit Pupil  0.33 – 0.08″, 8.3 – 2.1mm

Ocular Type  Fast Focus

Power Selector  Knurled Posi-Grip

Lens Coating  Fully Multi-Coated – 11 Layers

Focal Plane  SFP (Second Focal Plane)

Length  15.4in, 390mm

Weight  26.3oz, 745g
