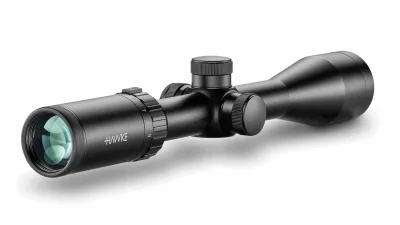

Slug Gun SR Reticle

Specifically designed for Slug Gun, Muzzleloader, and Straight-Wall cartridges such as 350 Legend. The Slug Gun SR reticle can be calibrated to speeds of 1300-2400 feet per second. It features illuminated aim points to assist with longer distance shots.

Model 14 219

QUICK LINK'S

Instruction Manual

Reticle Booklet

Objective Lens  40mm

Reticle  Slug Gun / Muzzleloader / Straight Wall

Parallax  Fixed

Magnification  3 – 9x

Optical System

System H2

Scope Tube  1 Inch

Illumination  5 Levels – Red/Green

Field of View  32.8 – 10.6ft @100yds, 10.9 – 3.5m @100m

Field of View (°)  6.2 – 2

Eye Relief  4.3in, 110mm

PX/Focus  100yds, 91m

Turret Caps  YES

Click Value  ¹⁄ ₄MOA

Elevation Turret Clicks (max)  85 MOA

Windage Turret Clicks (max)  85 MOA

Exit Pupil  0.52 – 0.17″, 13.3 – 4.4mm

Ocular Type  Fast Focus

Power Selector  Knurled Posi-Grip

Lens Coating  Fully Multi-Coated – 11 Layers

Focal Plane  SFP (Second Focal Plane)

Length  12.1in, 307mm
