30/30 Duplex Reticle

A variant on the classic L4 reticle, the 30/30 Duplex offers 30″ spacing from post to post at 100yds, when on 4x magnification

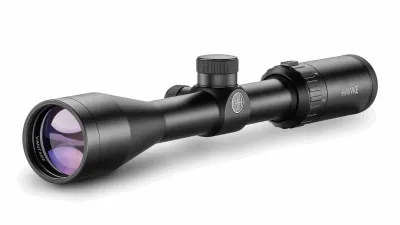

Model 14 120

QUICK LINK

Instruction Manual

Objective Lens 40mm

Reticle 30/30 Duplex

Parallax Fixed

Magnification 3 – 9x

Optical System System H2

Scope Tube 1 Inch

Illumination N/A

Field of View 39 – 12.7ft @100yds, 13 – 4.2m @100m

Field of View (°) 7.4 – 2.4

Eye Relief 3.5in, 90mm

PX/Focus 100yds, 91m

Turret Caps YES

Click Value ¹⁄ ₄MOA

Elevation Turret Clicks (max) 100 MOA

Windage Turret Clicks (max) 100 MOA

Exit Pupil 0.52 – 0.17″, 13.3 – 4.4mm

Ocular Type Fast Focus

Power Selector Knurled Posi-Grip

Lens Coating Fully Multi-Coated – 11 Layers

Focal Plane SFP (Second Focal Plane)

Length 12.4in, 315mm

Weight 14.2oz, 402g
