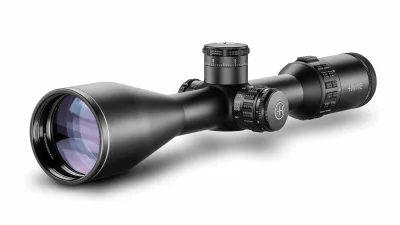

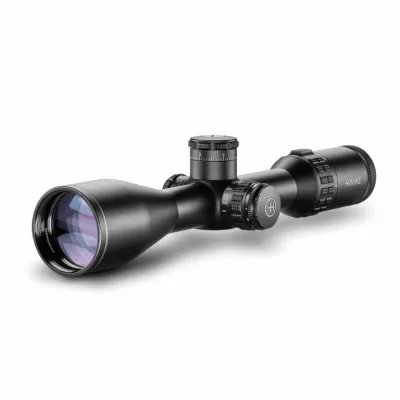

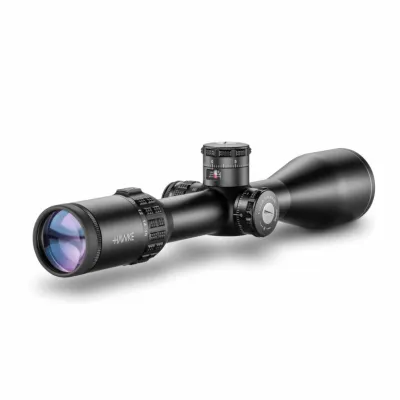

FFP Half Mil Reticle (24x)

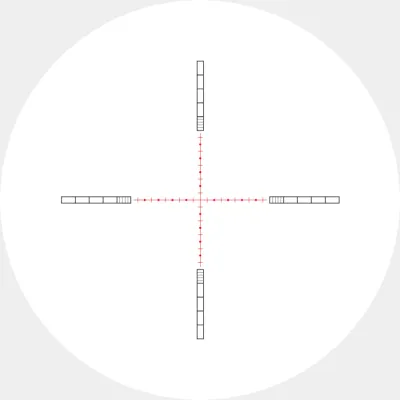

The FFP Half Mil reticle was developed specifically for first focal plane optical systems and based around the common principles of mil spaced reticles. With half mil spaced markings out beyond 5 mil in all directions, the FFP Half Mil is a versatile reticle that provides aim points no matter how extreme the conditions. A series of crosses etched on the lower section of the reticle make for extra windage aimpoints and act to give an easy quick-glance method of counting which mil spacing you’re aiming with. Outer posts are segmented into half mil spacing and 0.2 mil spacings, so can be used for bracketing and rangefinding.

Model: 17 460

QUICK LINKS

Instruction manual

Reticle Booklet

Sidewinder Product Brochure

Objective Lens

56mm Reticle FFP Half Mil

Parallax Side Focus

Magnification 6 – 24x

Optical System System H5

Scope Tube 30mm

Illumination 6 Levels with Off Positions In-between – Red

Field of View 21.3 – 5.4ft @100yds, 7.1 – 1.8m @100m

Field of View (°) 4.1 – 1

Eye Relief 4in, 102mm

PX/Focus (Error free from) 10yds – ∞, 9m – ∞

Turret Caps N/A

Click Value ¹⁄ ₁₀MRAD

Elevation Turret Clicks (max) 20 MRAD

Windage Turret Clicks (max) 20 MRAD

Exit Pupil 0.37 – 0.09″, 9.3 – 2.3mm

Ocular Type Locking Fast Focus

Power Selector Knurled Posi-Grip with Removable Zoom Lever

Lens Coating Fully Multi-Coated – 18 Layers

Focal Plane FFP (First Focal Plane)

Length 14.3in, 363mm

Weight 27.3oz, 775g
